Case Handling Vertical Material Lifts

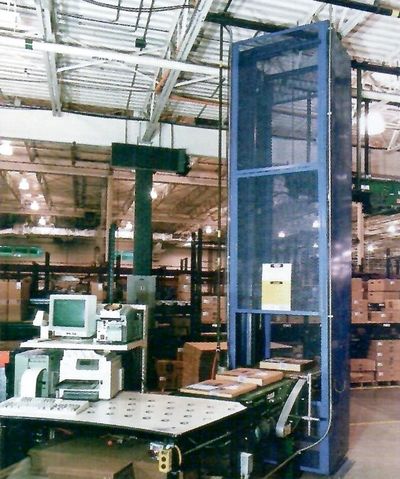

Reliable Case Handling: Model “RP” Pneumatic Vertical Conveyor

Model RP

Lift as much as 500 pounds of weight between levels with our Model “RP” Pneumatic Vertical Conveyor. This is a pneumatically-activated VRC that uses a pneumatic cable cylinder to raise and lower the powered vertical conveyor lift between levels. In fact, some of our high-end units can travel as fast as 150 feet per minute (FPM). Top and bottom shock absorbers make sure your products are transferred safely from level to level.

Due to the cantilever carriage design, product movement configurations can be Z Flow, C Flow, Right Angle Flow, or a combination. Powered chain-driven-live-roller conveyors (CDLR) are available for heavier loads. Our popular multi-poly belt conveyors are ideal for lighter loads. A variety of conveyor speeds are available to match your infeed and outfeed conveyors, such as 30, 45, 60, and 90 FPM.

The units we ship are all completely prewired with all devices tied into a terminal strip in a junction box. Full PLC controls are available upon request. In addition, all our vertical conveyors meet or exceed current ANSI B20.1 safety guidelines. Features include:

  • Product Sensing Photoeyes
  • Safety Tunnels at Entry and Exit Points
  • Fully Guarded/Protected Frames
  • Safety Placards
  • Cam Activated Free-Fall Braking System

Model RC Electric Vertical ConveyorModel “RC” Electric Vertical Conveyor

The Model “RC” Electric Vertical Conveyor has all the excellent features of the “RP” model. For instance, it is also ideal for moving loads as heavy as 500 pounds vertically between two or more levels. It utilizes a top-mounted motor/brake/reducer unit to raise and lower the conveyor bed. Speeds range from 30 to 300 or more FPM. Positioning and over-travel limit switches assure proper conveyor positioning all the time.

RC Lift Video


Features of These Vertical Conveyor Models Include



High Quality Uni-Welded Frame

High Quality Uni-Welded Frame

Required Safety Signage

Required Safety Signage

Uni-Welded Carriage

Uni-Welded Carriage

Standard Control Panel

Standard Control Panel

Quiet Integral Conveyor

Quiet Integral Conveyor

Proven Allen-Bradley Components

Proven Allen-Bradley Components

Powerful Free-Fall Brake

Powerful Free-Fall Brake

Integrated Motor Brake Gear Reducer

Integrated Motor Brake Gear Reducer

Pleasing High-Tech Appearance

Pleasing High-Tech Appearance



RP/RC Downloadable Brochure (pdf)


Other Popular Options

Independently Driven Over and Under Conveyors
Independently Driven Side-by-Side Conveyors
Intermediate Stops
High-Speed Throughput
Stainless/Wash Down/Clean Room
Custom Paint Colors
Right Angle Infeed/Discharge
Restricted Clearance and Low Infeed Applications
Turnkey Control Package
Spliced Frame/Modular Construction for Extra Tall Units
Custom Infeed/Discharge/Metering Conveyors



Z Product Flow

Z Product Flow

C Product Flow

C Product Flow

Right Angle Product Flow

Right Angle Product Flow




Standard Features of Cobra Continuous Vertical Conveyors (CVC)

Cobra Continuous Vertical Conveyor Cobra Logo
Flexible Lifting to Raise and Lower Loads (From 10 to 30 Cycles per Minute)
Custom Capacities to 150 Pounds per Flight
Modular Frame Design for Lifting to Heights of 20 Feet
Custom Designed around Your Specific Applications and Specifications.
Safe Unit That Is Guarded on All Sides and Utilizes Safety Tunnels to Protect Infeed/Discharge Conveyors
Specially Designed Chain Track to Ensure Proper Chain Alignment
Matched and Stretched Chains for Smooth Operation
Efficient Drive Motor Covered by a Two-Year, 24-Hour-a-Day Unlimited Use Warranty
Small Footprint but High Throughput
Complies with ANSI B20.1 Conveyor Codes

Verticon Cobra Lift


Vertical Case Accumulation and Indexing Systems

At Verticon, we also manufacture vertical case accumulation and indexing systems. When floor space is limited, these systems are ideal if you need vertical case accumulation. With slight modifications, we also add custom top-mounted case extractors, turning this into a vertical indexing conveyor for high-density case movement between floors or ceiling-hung conveyors.

Vertical Case Accumulation/Indexing Conveyor (pdf)

Contact us to see how we can improve material handling at our factory.
